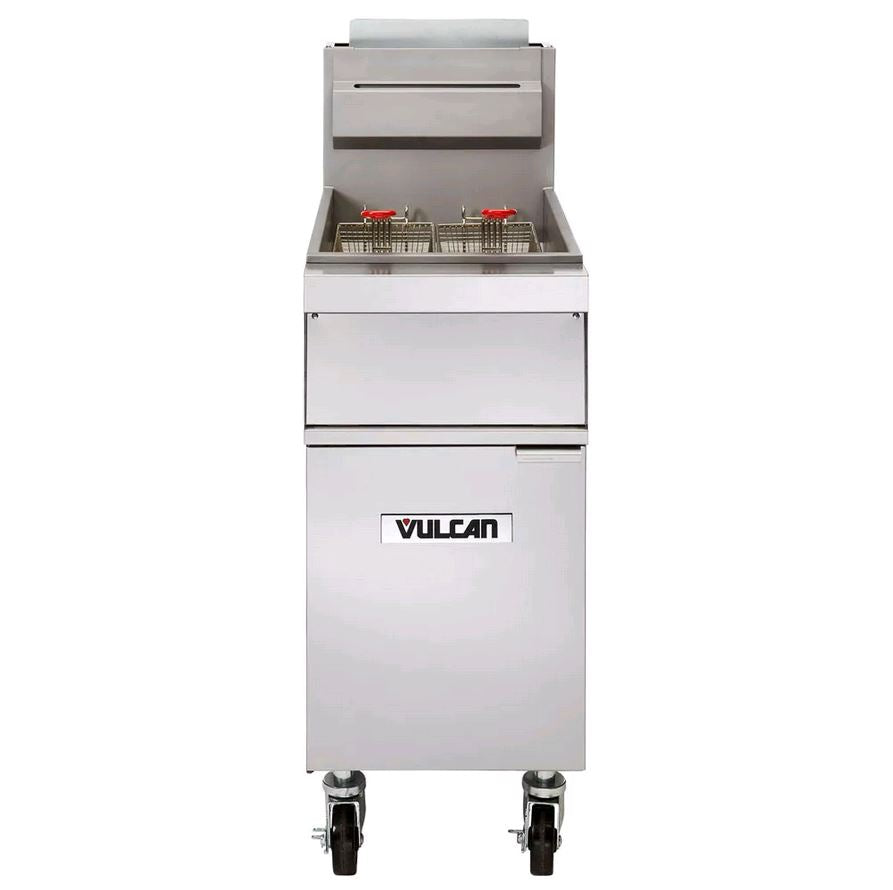

Vulcan Natural Gas 45lb Vat Fryer 1GR45M

The Vulcan 1GR45M fryer is natural gas heated and has a 45- to 50-pound oil capacity in the 14-inch-by-14-inch tank. Two fryer baskets are included to fit in the tank, so multiple batches of product can be prepared at the same time. Millivolt controls adjust the temperature from 200 to 400 degrees Fahrenheit, and a tank brush, crumb scoop, and clean-out rod are included with the unit to simplify cleaning. Staff can remove debris from the tank with the brush, and the scoop removes larger debris the brush cannot reach. Shortening can be carefully stirred out of the cold area with the clean-out rod so it can melt.

Product Details

• Heated with natural gas
• 14-in. x 14-in. stainless steel fry tank with a 45-50 lb. oil capacity
• 2 fry baskets with plastic-coated handles can prepare 2 batches at once
• Millivolt control system adjusts from 200-400 degrees F
• Heavy-duty, stainless steel cabinet resists corrosion
• 2 of the (4) 6-in., adjustable casters lock to keep the unit in place
• Hi-limit shut-off turns the gas valve off and extinguishes the pilot if the shortening gets too hot
• Combination gas shut-off valve and pilot safety system
• 1¹⁄₄-in. full port ball type drain valve
• 120,000 BTU
• Overall dimensions: 15¹⁄₂ in. W x 30¹⁄₄ in. D x 47¹⁄₈ in. H

Cleaning Design and Accessories

• Stainless steel components resist corrosion and simplify cleaning
• 4 heat exchanger tubes are in a reachable position
• Tank brush removes debris
• Crumb scoop removes heavy debris from the tank bottom
• Clean-out rod stirs hard shortening above the cold zone to melt
